Product Details

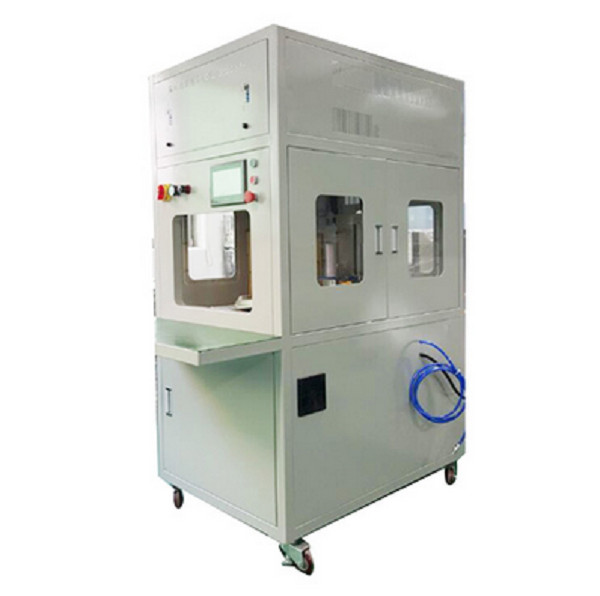

product name: TWSL-700 CNC automatic spot welding machine
Features:
1 ,For 18650 battery. Mobile power and other standardized production.
2 , Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.
3 , Control system: PLC programming control, with fault alarm system.
4 , Cooling device comes with solder pin and prolong life.
5 , X-axis and Y-axis ball screw design, the stepper motor driven.
Technical Parameters:
model: TWSL-700
Power supply : 220V,50HZ 3.6Kw
Use pressure : 0.3-0.8Mpa
X Module travel : 0-350MM maximum 18 cores
Y Module travel : 0-135MM maximum 7 core
X-axis emission number of batteries : 18PCS within
Y-axis discharge batteries Number : Within 7 lines
Dimensions: L1300 * W750 * H1300MM
Machine weight : 150KG
Productivity: 6 and 16 string, 5 and 16 strings, strings 4 and 16, 3 and 16 series, about 2000 batteries / hour
Welding parameters:
model: TWSL-200
power: 10KVA (max)
Input Frequency: 50/60Hz
Input voltage: 220VAC
Input gas source: 7-8 Bar (kg / cm)
Primary current: 5-30A
Primary short-circuit current: 1500A
The whole structure: Integrated structure
Welding arm structure: Telescopic swing control
Electrodes to the body distance: 100 mm (Scalable adjustable)
Cylinder diameter: 20 mm
The number of pulses : 0-9
Pulse energy level: 0-99
Automatic compensation range: + 40V - 40V
Panel digital display: 7-segment LED display
External dimensions : 445 * 224 * 343 mm
Gross weight : 42 kg
