E bike/E scooter battery making 18650 Battery Spot Welder,battery automatic spot welding

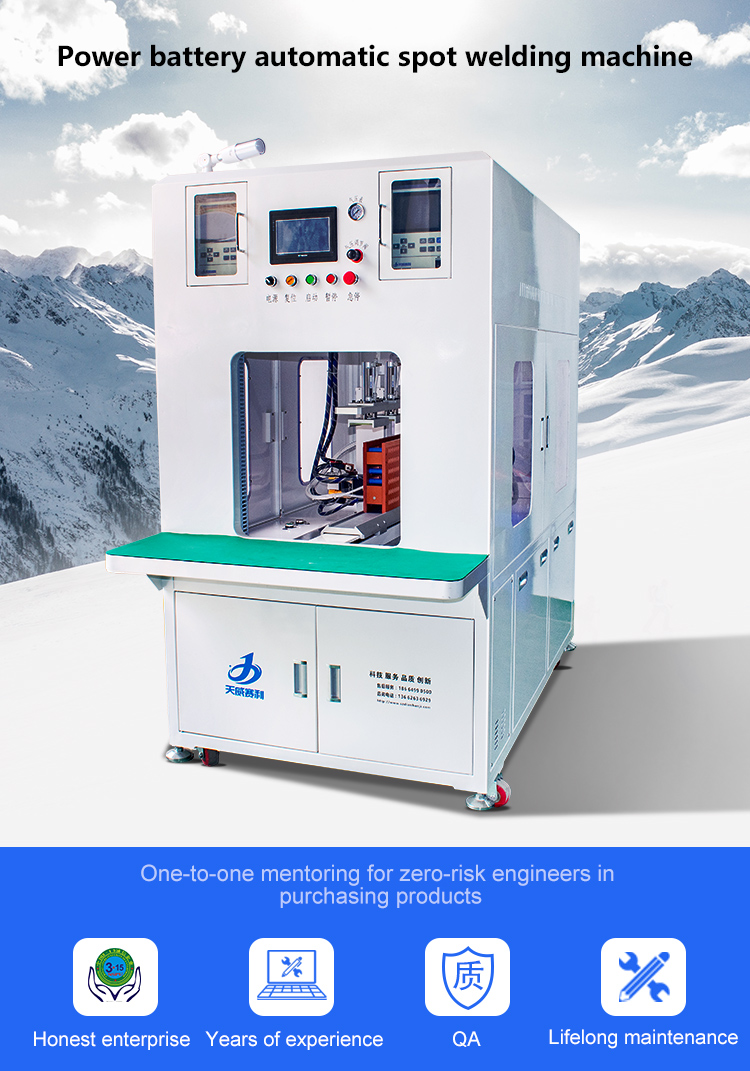

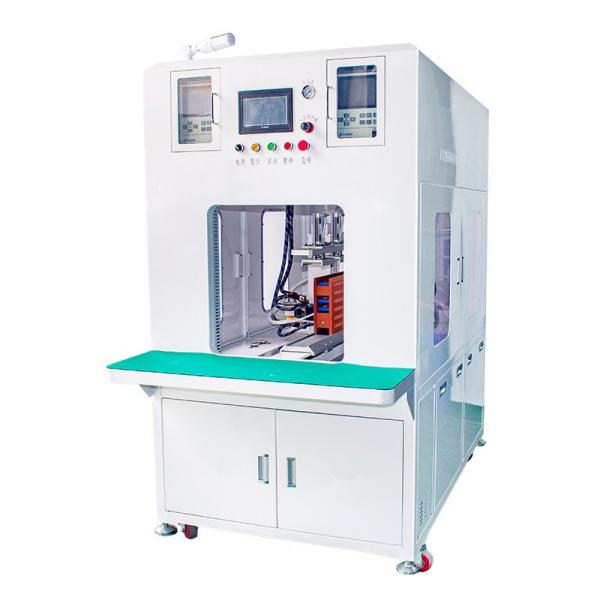

The TWSL-700L Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient.
There are two models of automatic spot welding machines:
TWSL-800:Single Side Machine

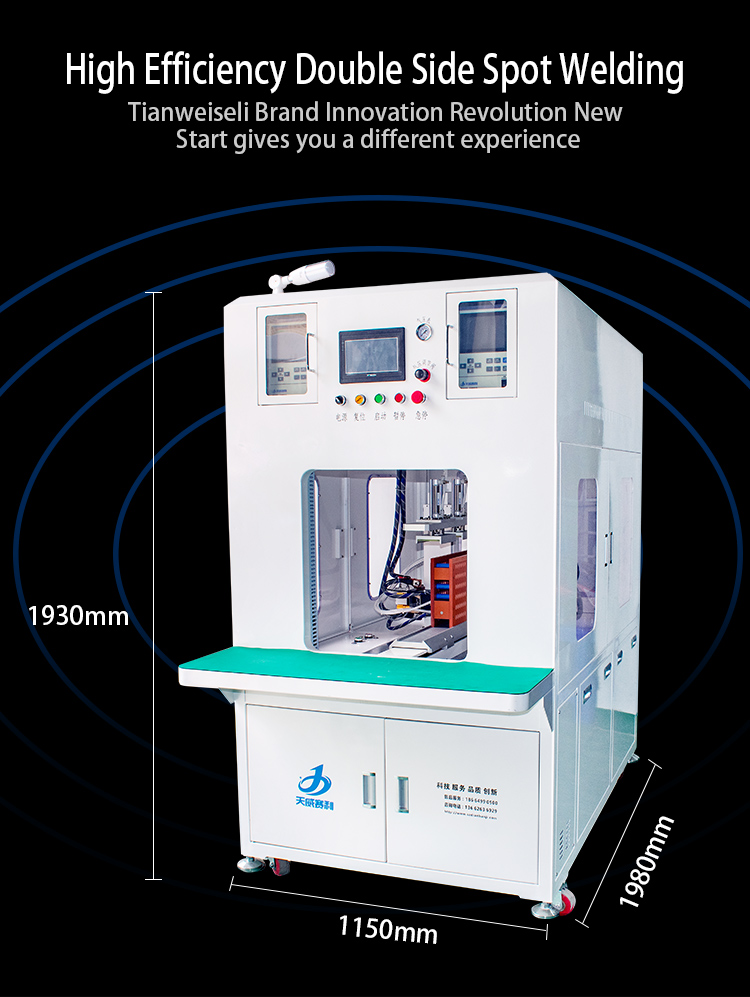

TWSL-700L:Double Side Machine
Please check table below for the difference of the two machines
| SPECIFICATIONS FOR TWSL-800 AND TWSL-700 |
| | TWSL-800 | TWSL-700L |
| Welding Head Number | 1 | 2 |
| Travel | X: 400mm;
Y: 500mm | X: 310mm;
Y: 600mm |
| Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h |
| Welder Power Suppler | 5000A Inverter Spot Welder |
| Max Motor Speed | 1000mm/s |
| Max Battery Number | 450 pcs (18650) |
| Operate System | Embedded system |
| User Interface | Touch screen |
| Drive Mode | Step motor and precision guide rail |
| Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) |
| Air Pressure | 0.3-0.6 MPa |
| Machine Size | 800L*1500W*1650Hmm | 1980L*1150W*1930Hmm |
| Machine Weight | 300kg | 350kg |

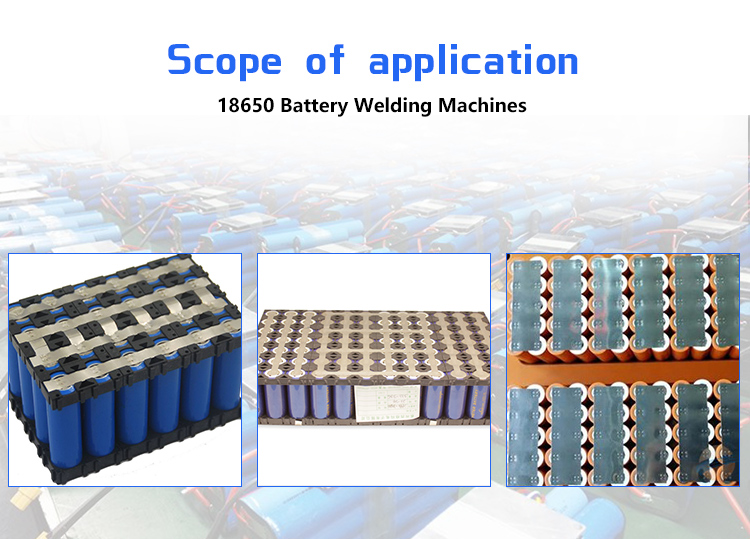

Application Area:
With the corresponding fixture, TWSL-700L can weld 18650, 21700,26650, 32650 and other cylindrical batteries and etc
Fixture/jigs can be customized accroding to customer battery PACK
Operation:
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, TWSL-700L automatically complete all welding actions.
4. TWSL-700L sound to prompt operator replacement of new fixture (battery pack)

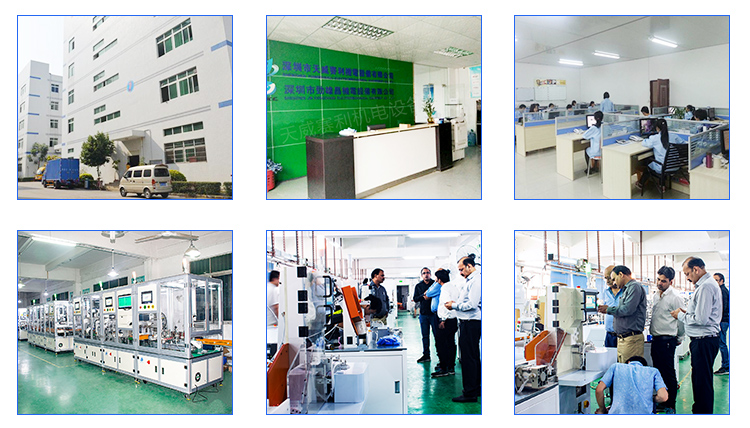

Our Factory
Our Partners
For successful cases,
we recommend:
In China: Like SCUD, Desay, UTEK, LISHEN, GREAT POWER, SUNWOOD, LARGE, TIANNENG Battery, SUMEC.etc.
In India, like INTEX, ICCON, LIVGUARD, AXIOM, Fusion Power, Ambrane. I.E., RX infotech, Greenway, ADIT, etc,
In US: Like Holley, MSD,
Others country customers, like Germany Varta, Korea Chience, PowerCraft, etc.
Certification
FAQ
Q: What can your machines do?
A: Make the batteries production automatically.
Save the factory owner's invest and better the efficiency.
Q: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q: How can I see samples or know more about the machines?
A: We have real time video on Youtube.
Please contact our sales to get the links.
Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q: What's the trade terms?
A: FOB or EXW
Q: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.
All of our products are with CE certifications and are good to export worldwide.
Q: I am a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories.
Our professional engineers and sales shall provide you with budget and costs how much it takes.
Q: Can you provide the engineer to our factory to do training and installtion? and after-sales services?
A: Of course.All the services will be provided.
